Harmonics in 60 Hz Electrical Systems: Understanding and Managing According to NEC

Modern electrical systems are increasingly populated with non-linear loads—such as variable frequency drives (VFDs), LED lighting, UPS systems, and computers. While these technologies improve efficiency and control, they introduce a hidden challenge: harmonics.

What Are Harmonics in a 60 Hz System?

In an ideal AC power system, voltage and current waveforms are pure sinusoids at the fundamental frequency—60 Hz in North America. However, non-linear loads draw current in abrupt pulses rather than smooth waves, introducing additional frequency components called harmonics.

Harmonics are integer multiples of the fundamental frequency:

  • 3rd harmonic = 3 × 60 = 180 Hz
  • 5th harmonic = 5 × 60 = 300 Hz
  • 7th harmonic = 7 × 60 = 420 Hz

These harmonics combine with the fundamental waveform, creating distortion that can lead to overheating, equipment malfunction, and energy losses.

Sources of Harmonics

  • Variable Frequency Drives (VFDs).
  • UPS systems.
  • LED and fluorescent lighting.
  • Computers and office equipment.
  • Battery chargers and welders, ETC.

Impact of Harmonics

  • Overheating of conductors and transformers.
  • Voltage distortion due to interaction with system impedance.
  • Nuisance tripping of breakers and protective devices.
  • Reduced equipment life (motors, transformers).
  • Increased energy costs due to higher RMS currents.

NEC and Harmonics: What Does the Code Say?

The National Electrical Code (NEC) does not define harmonics explicitly, but it addresses their effects in several ways:

Key NEC References

  • NEC 310.15(B)(5)(c): Requires upsizing neutral conductors in 3-phase, 4-wire systems because triple harmonics (multiples of 3, like 3rd, 9th, 15th) can cause excessive neutral current.
  • NEC 90.1(B): States that the NEC ensures safety, not operational integrity—meaning harmonic mitigation is a design responsibility.
  • NEC Articles 647 & 708: Cover sensitive electronic equipment and critical operations, where harmonic control is essential.

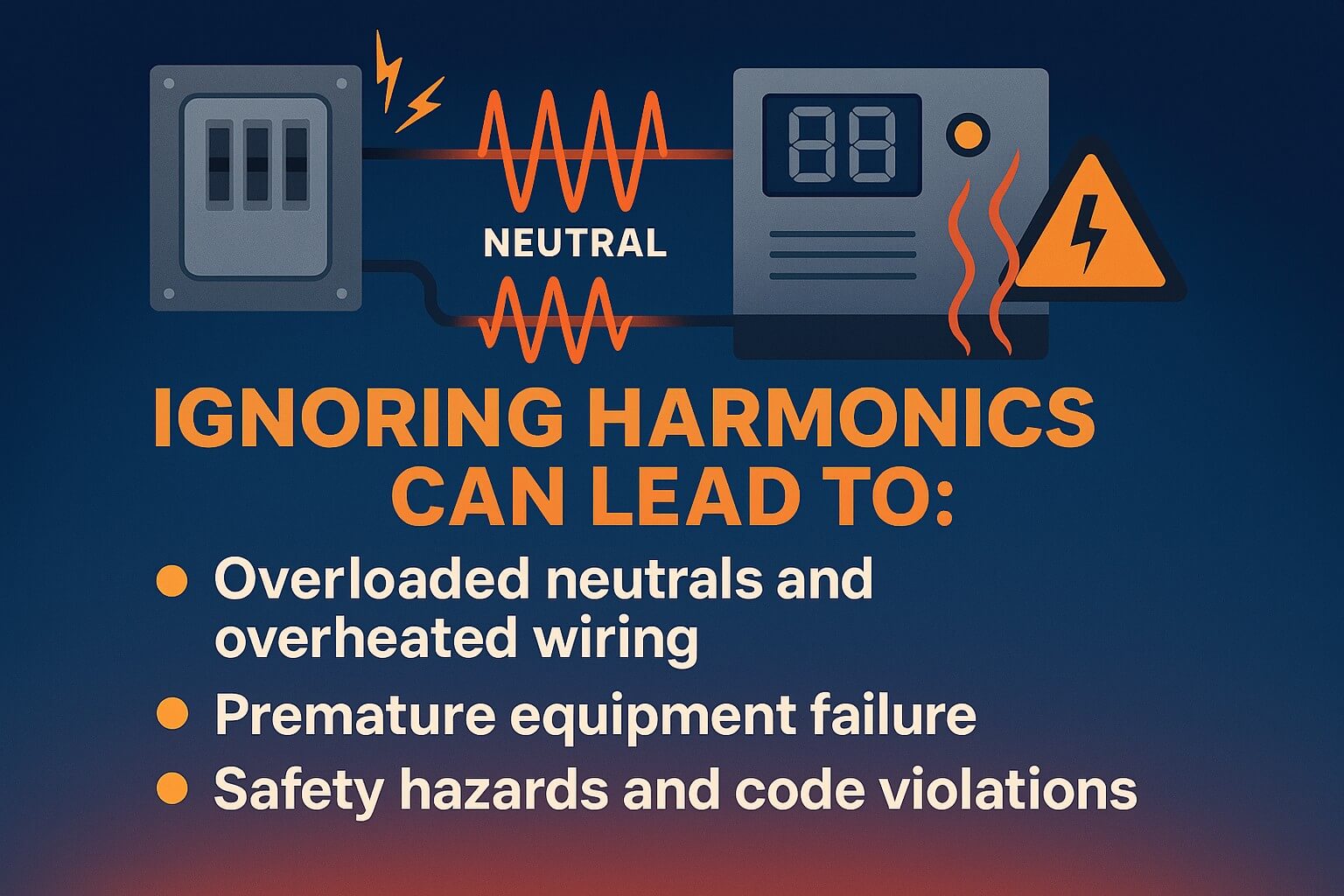

Why It Matters:

IEEE 519 and Power Quality

While NEC focuses on safety, IEEE 519-2022 sets power quality limits:

  • Voltage THD at Point of Common Coupling (PCC):
  •  ≤ 5% for systems ≤ 69 kV
  •  Current distortion limits depend on short-circuit ratio (ISC/IL)

Compliance with IEEE 519 is considered best practice for maintaining system reliability and avoiding utility penalties.

Mitigation Strategies

  • Passive Filters: LC filters tuned to specific harmonics
  • Active Filters: Power electronics that inject counter-harmonic currents
  • Hybrid Solutions: Combine passive and active filtering for flexibility
  • K-Rated Transformers: Designed to handle harmonic-rich loads
  • Oversized Neutrals: To handle triplen harmonic currents

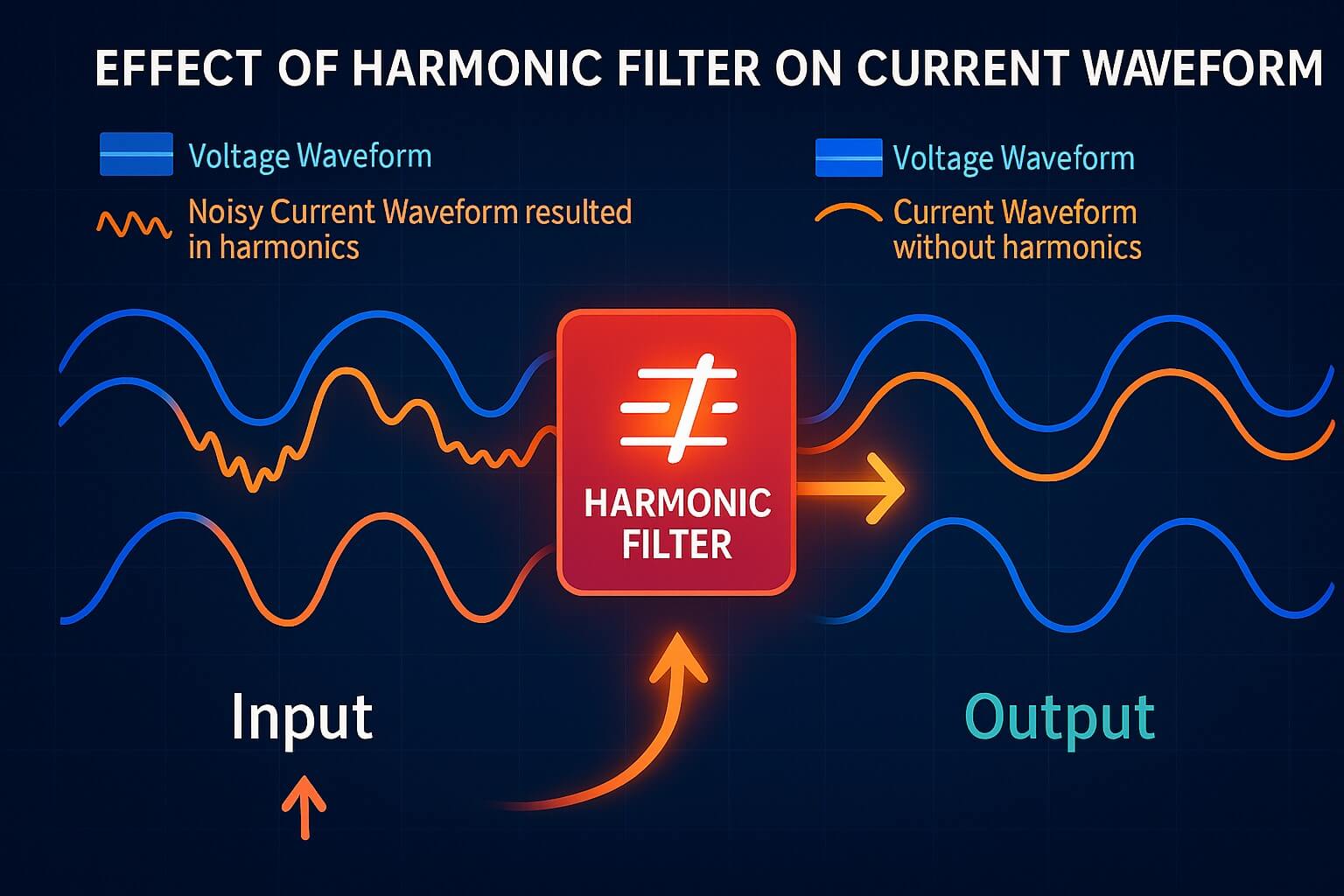

Active and passive harmonic filters are used in electrical systems to mitigate harmonics—unwanted frequencies that distort the waveform of electrical signals, typically caused by non-linear loads like variable frequency drives (VFDs), computers, and LED lighting.

Here’s a breakdown of both types:

Passive Harmonic Filters

Working Principle:

  • Passive filters use combinations of inductors (L), capacitors (C), and resistors (R) to block or divert harmonic currents.
  • They are tuned to specific harmonic frequencies (e.g., 5th, 7th, 11th) and provide a low-impedance path for those harmonics to ground.

Advantages:

  • Simple and cost-effective.
  • No external power required.
  • Reliable and low maintenance.

Disadvantages:

  • Fixed tuning—only effective for specific harmonics.
  • Can cause resonance with the power system.
  • Less effective with varying load conditions.

Active Harmonic Filters (AHFs)

Working Principle:

  • Active filters use power electronics (like IGBTs and microcontrollers) to inject counter-harmonic currents that cancel out the harmonics produced by the load.
  • They continuously monitor the load and adapt in real-time.

Advantages

  • Dynamic and adaptive filtering across a wide range of harmonics.
  • Effective under varying load conditions.
  • Can improve power factor and reduce voltage distortion.

Disadvantages:

  • More expensive and complex.
  • Requires external power and regular maintenance.
  • Sensitive to environmental conditions.

Conclusion

Harmonics in 60 Hz systems are a growing concern as non-linear loads dominate modern facilities. While the NEC addresses safety aspects like neutral sizing, power quality compliance falls under IEEE 519 and good engineering practice. Implementing harmonic mitigation strategies ensures safety, reliability, and efficiency.
